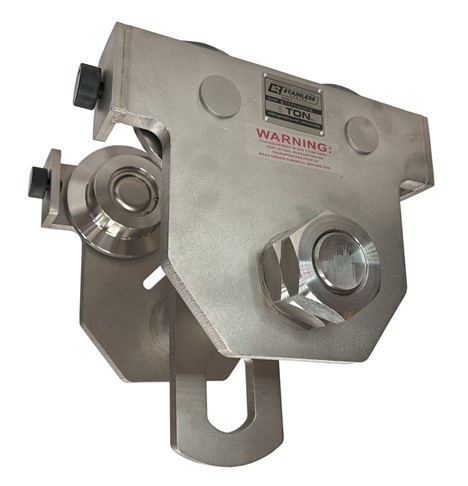

OZSS5PBT Stainless Steel Push Beam Trolley 5 T

OZSS5PBT Stainless Steel Push Beam Trolley 5 T

$3,420.40

PO Box 2571
Platte City, MO 64079

Call us at 816-518-3797

Compare Products

Features

STAINLESS STEEL PUSH BEAM TROLLEY

FEATURES

    • Lightweight, robust construction
    • Fits to most I-, S-, and W-beams
    • Type 304 Stainless Steel for corrosive-resistance
    • Stainless steel trolleys are provided with food-grade grease that meets NSF H1 standards
    • Precision ball bearing trolley wheels
    • Anti-drop plate
    • Stainless steel ID tag
    • Individual test certificate and serial number

SPECIFICATIONS

  OZSS025PBT OZSS05PBT OZSS1PBT OZSS2PBT OZSS3PBT OZSS5PBT
Safe working load
lb (kg)		 500
(250)		 1,000
(500)		 2,000
(1,000)		 4,000
(2,000)		 6,000
(3,000)		 10,000
(5,000)
Adjustable flange width
in (mm)		 2.00-6.00
(50-152)		 2.50-8.00
(64-203)		 2.50-8.00
(64-203)		 3.50-8.00
(89-203)		 4.00-8.00
(102-203)		 4.00-8.00
(102-203)
Max flange thickness
in (mm)		 0.82
(21)		 0.97
(25)		 0.97
(25)		 1.11
(28)		 1.34
(34)		 1.57
(40)
Product dimensions
in (mm)		 A 10.00
(254)		 12.21
(310)		 12.80
(325)		 13.39
(340)		 14.57
(370)		 16.74
(425)
B 7.70
(196)		 8.39
(213)		 9.57
(243)		 10.75
(273)		 12.72
(323)		 15.56
(395)
C 6.80
(173)		 7.80
(198)		 8.82
(224)		 10.56
(268)		 12.96
(329)		 15.08
(383)
D 4.00
(102)		 4.61
(117)		 5.08
(129)		 6.34
(161)		 7.76
(197)		 9.10
(231)
E 2.56
(65)		 2.83
(72)		 3.50
(89)		 4.00
(102)		 4.78
(121)		 5.57
(142)
F 1.77
(45)		 2.05
(52)		 2.48
(63)		 2.68
(68)		 3.62
(95)		 3.86
(98)
G 3.27
(83)		 4.25
(108)		 4.39
(112)		 5.94
(151)		 7.28
(185)		 8.70
(221)
H 1.18
(30)		 1.52
(39)		 1.52
(39)		 2.01
(51)		 2.68
(68)		 3.35
(85)
I 0.59
(15)		 0.75
(19)		 0.75
(19)		 0.87
(22)		 0.98
(25)		 1.26
(32)
J 0.94
(24)		 1.26
(32)		 1.26
(32)		 1.50
(38)		 1.77
(45)		 2.13
(54)
K 1.65
(42)		 2.36
(60)		 2.36
(60)		 3.35
(85)		 3.82
(99)		 4.72
(120)
L 0.24
(6)		 0.31
(8)		 0.39
(10)		 0.47
(12)		 0.55
(14)		 0.63
(16)
M 0.67
(17)		 1.03
(26)		 1.30
(33)		 1.71
(43)		 1.99
(51)		 2.21
(56)
Minimum radius curve
ft (m)		 3.28
(1.00)		 3.28
(1.00)		 3.28
(1.00)		 4.26
(1.30)		 4.26
(1.30)		 5.24
(1.60)
Net weight
lb (kg)		 7.70
(3.50)		 13.90
(6.30)		 22.70
(10.30)		 39.70
(18.00)		 81.60
(37.10)		 114.60
(52.10)
