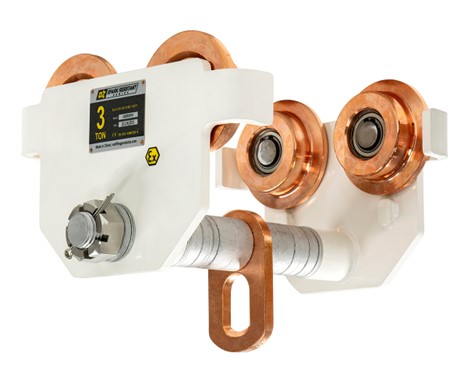

OZSR3PBT 3 Ton Spark Resistant Push Beam Trolley

OZSR3PBT 3 Ton Spark Resistant Push Beam Trolley

$2,655.26

PO Box 2571
Platte City, MO 64079

Call us at 816-518-3797

Compare Products

Features

SPARK RESISTANT PUSH BEAM TROLLEY

EXPLOSION-PROOF TROLLEY FOR HAZARDOUS ENVIRONMENTS

Potentially explosive atmospheres exist in many areas of industry. Explosive zones carry extremely strict guidelines and equipment requirements. OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C. They are suitable for potentially explosive atmospheres including Zone 1 & 2 (gas) as well as Zone 21 & 22 (dust).

FEATURES

  • Anti-spark coating
  • Copper-plated wheels and bail
  • Copper-riveted ID tags
  • Fits to most I-, S-, and W-Beams
  • Precision ball bearing trolley wheels
  • Anti-drop plate
  • Individual test certificate and serial number

Standards – CE, ATEX–94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, ASME B30.11, ASME B30.16
(for use with manual or powered hoists)

SPECIFICATIONS

OZSR05PBT OZSR1PBT OZSR2PBT OZSR3PBT OZSR5PBT OZSR10PBT
Capacity (Tons) 0.5 1 2 3 5 10
 Minimum Radius Curve (ft.) 2.62  3.28  3.61 4.26  4.59  6.56
Product Dimensions (in.) A 11.61 12.24 16.89 17.52  17.99 19.29
B 7.83 9.69 10.87 13.07  14.84 16.69
C 7.36 8.74 10.34 12.17 13.90 15.59
G 4.13 4.92 5.91 6.73  7.72 7.48
Max Flange Thickness (in.) E 1.18 1.50 1.50 1.57  1.65 1.77
 Adjustable Flange Width (in.)  1.97-8.00 2.50-8.00  3.64-12.00 3.94-12.00  4.50-12.00 4.88-12.00
Net weight (lb.) 16 23 42 64 95 196

Wheel & bail dimensions.

 SIZE 0.5T 1T 2T  3T   5T 10T
E (in.) 3.11 3.74  4.25  5.12  5.63 6.93
F (in.) 2.17 2.68  3.15  3.94 4.33 5.35
G (in.) 3.50 4.02 5.12  6.02 7.24 7.68
H (in.) 1.26 1.58 2.05 2.48 2.95 4.72
I (in.) 0.57 0.59  0.71 0.87  1.18 1.77
J (in.) 0.98 1.18  1.50 1.58 1.97 2.84
K (in.) 1.97 2.44 2.95 3.35  4.25 11.42
L (in.) 0.24 0.32  0.47  0.55  0.63 0.98

Dimensions and illustrations are for reference only and subject to change without notice.
